ATEM Mini Extreme ISO G2 - Powerful live production switcher, 8 HDMI inputs, 3 HDMI outputs, built-in streaming, multi-view, CFexpress and Thunderbolt for recording / playback, 10G Ethernet for fast network storage access

Powerful live production switcher, 8 HDMI inputs, 3 HDMI outputs, built-in streaming, multi-view, CFexpress and Thunderbolt for recording / playback, 10G Ethernet for fast network storage access

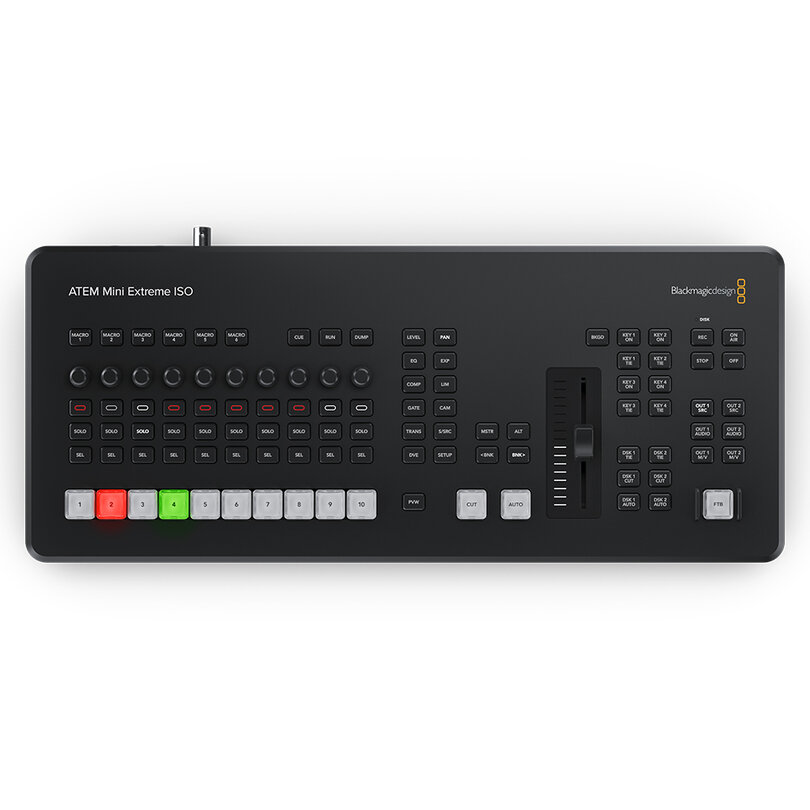

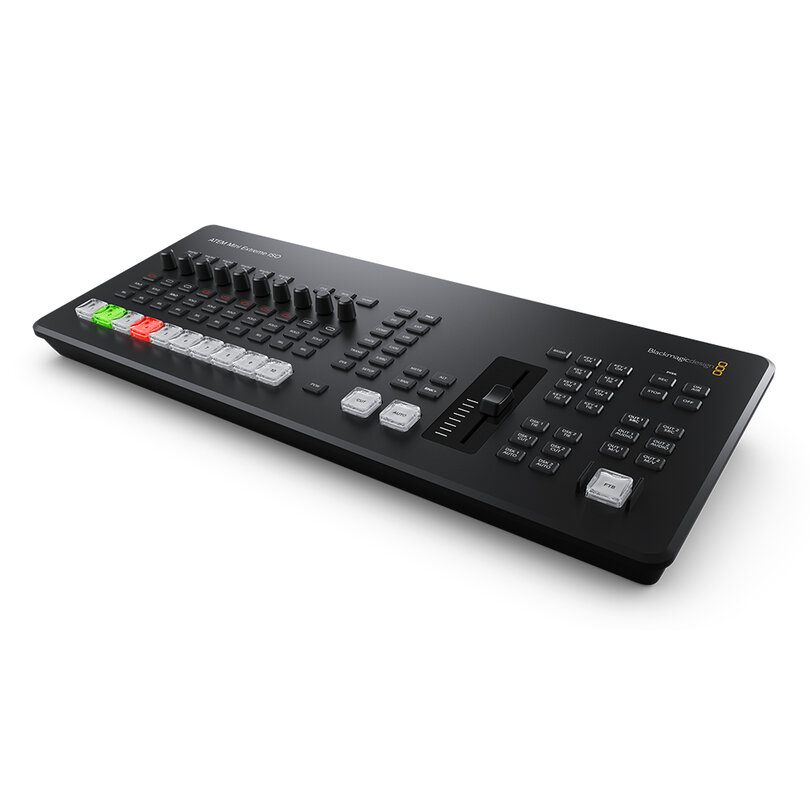

ATEM Mini Extreme ISO G2 is an advanced, compact live production switcher that's perfect for high end broadcast studios. It features a new control panel design that's been streamlined for ease of use with improved button layout and features.

It features 8 standards converted HDMI inputs, 3 independent HDMI outputs and a built in streaming engine that lets you stream directly to a live production switcher without the need for external streaming hardware. The built in ISO recording feature lets you save all 8 video inputs separately for editing.

10G Ethernet gives you fast access to network storage. Phantom powered XLR audio inputs and 32 channels of digital MADI support give you professional audio management. CFexpress and Thunderbolt are also supported for high speed recording and playback. The multi view lets you monitor up to 16 sources at the same time. The DVE and advanced chroma key let you create professional graphic effects and overlays.

It can also be used as a USB webcam as a video source for streaming software. The main difference compared to the ATEM Mini Extreme ISO is the addition of 10G Ethernet for faster access to network storage. As mentioned, the G2 model also supports CFexpress and Thunderbolt, plus there are now three HDMI outputs, up from two on the previous model. For audio, the G2 features phantom powered XLR inputs and 32 channels of digital MADI support.

Customer benefits

• ISO saving of all 8 video inputs
• Built in streaming so you can go direct without any additional hardware
• 10G Ethernet support, plus CFexpress and Thunderbolt recording
• Phantom powered XLR inputs with MADI support for audio
• Advanced effects including DVE and chroma key for broadcast quality graphics and overlays
• USB webcam for use with streaming software such as Zoom and Teams

Areas of use

• Live Production
• Events
• Streaming
• Broadcast

Technical characteristics

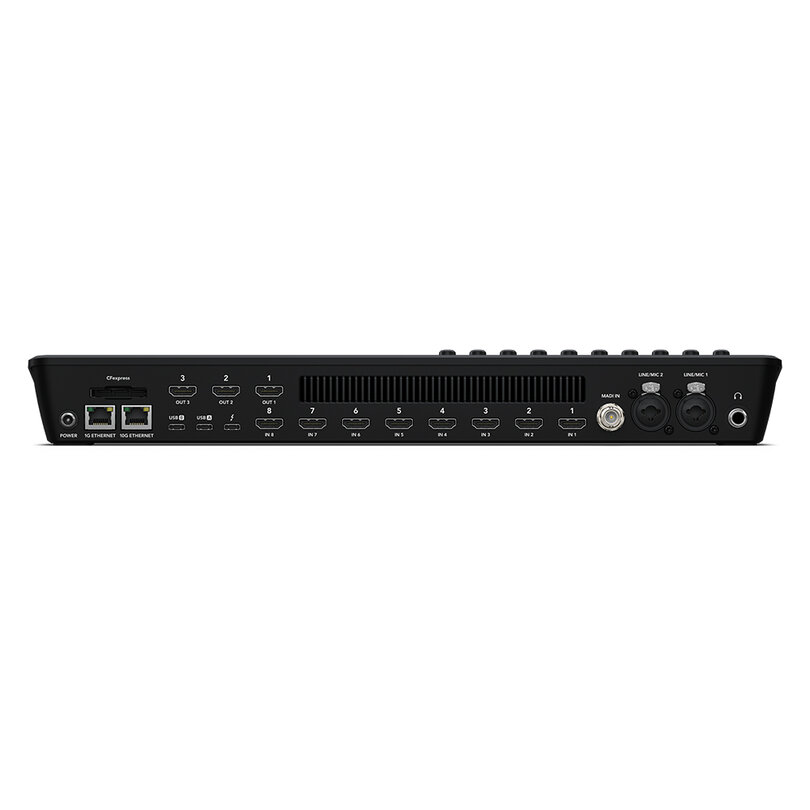

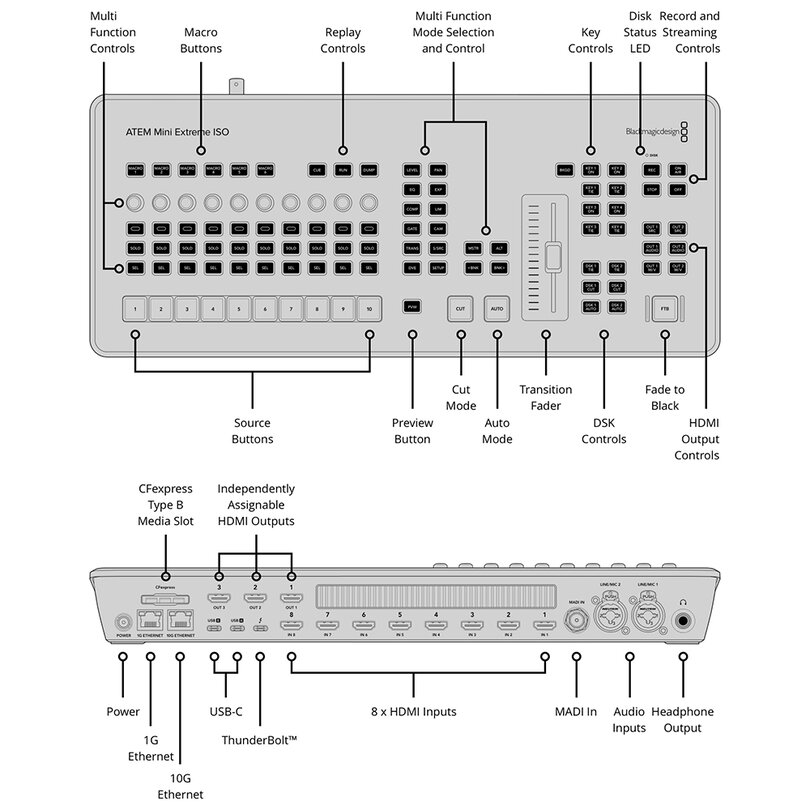

Connections

• Total video inputs: 9
• Total outputs: 4
• Total aux outputs: 4
• SDI rates: 1.5G, 3G
• Total audio inputs: 2 x XLR Combo with Phantom power, 1 x BNC 32 CH MADI digital audio
• Total audio outputs: 1 x 6.35 mm headphone jack
• HDMI video inputs: 8 x HDMI type A, 10-bit HD switchable, 2 channel embedded audio
• Video input Re-Sync: on all 8 HDMI inputs and remote sources
• Webcam outputs: 2 x USB-C supporting 720p or 1080p at PGM frame rate
• Total multi views: 1 x HDMI, 1 x webcam
• Control panel connection: Ethernet. Direct connection between panel and chassis, or via network
• Frame rate and format converters: on all 8 HDMI inputs and remote sources
• HDMI video outputs: 3
• HDMI program outputs: 3
• Ethernet: 1 G Ethernet for simple streaming, control panels and internet connection,
  10 G Ethernet connection for recording
• Internal Time Code generator
• Tally output: on Blackmagic HDMI and remote cameras
• Computer interface: 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam output, software control, software updates and panel connection. 1 x Thunderbolt for fill key video out, video input, Ethernet to storage, and power

Standards

• HD video input standards: 720p 50, 720p 59.94, 720p 60. 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60. 1080i 50, 1080i 59.94, 1080i 60
• HD video output standards: 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60
• Video streaming standards: 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60
• Video sampling: 4:2:2 YUV
• Color precision: 10-bit
• Color space: Rec 709
• HDMI input resolutions from computers: 1280 x 720p 50 Hz, 59.94 Hz and 60 Hz. 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 Hz. 1920 x 1080i 50, 59.94 Hz and 60 Hz
• Colorspace conversion: hardware based real time

Product specifics

• Number of mix effects rows: 1
• Direct cross points: 10
• Crosspoint button type: NKK buttons
• Preview transition: 1
• Source select bus: set using multi-function controls and Fairlight audio status output
• Dedicated macro buttons: 6
• Transition type buttons: set using multi-function controls and Fairlight audio status output
• Transition rate: set using multi-function controls and Fairlight audio status output
• Key buttons: 8
• AUX buttons: 6
• Fader bar: 1
• Record buttons: 2
• Stream buttons: 2
• DSK transition selectors: 6
• Fade to black buttons: 1 NKK button
• Upstream keyers: 4
• Downstream keyers: 2
• Advanced chroma keyers: up to 4
• SuperSource: 1
• DVEs:2
• Linear / Luma keyers: up to 4
• Transition keyer (Stinger / DVE): DVE only
• Color generators: 2
• Control panel: set using multi-function controls and Fairlight audio status output
• Routable windows: 16
• Tally: red for program and green for preview indication

Audio

• Audio mixer: 26 input x 2 channel mixer, (8 HDMI + 16 MADI + XLR + Thunderbolt), selectable ON / OFF / Audio Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: compressor, gate, limiter, 6 bands of parametric EQ. Master gain control
• Analog input: balanced stereo XLR Combo connectors
• Analog input delay: up to 8 frames
• MIC Plug-in power: +48 V Phantom power on XLR Combo inputs

Streaming sources

• Total streaming sources: up to 8
• Streaming source format: RTMP / SRT video with audio over a local network or internet connection from compatible Blackmagic Design cameras outputting HyperDeck High, HyperDeck Medium, HyperDeck Low, Streaming High, Streaming Medium or Streaming Low quality setting
• Streaming source setup: mapped to inputs in ATEM Software Control settings

Streaming

• Direct streaming: supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over Ethernet or a shared internet connection over USB‑C

Recording

• Direct recording video and audio: CFExpress slot for recording, network Recording, USB-C recording
• Video recording: 8 x HDMI ISO inputs as H.264 .mp4 files at up to 70 Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio
• Audio recording: 26 x 2 channel audio inputs recorded as separate 24‑bit 48 kHz .wav files. Including 1 x analog 2 channel audio input, 8 x input source 2 channel embedded audio inputs and 32 x MADI audio channels
• Switching: program switching recorded as a DaVinci Resolve project .drp file
• Media format: supports media formatted ExFAT (Windows/Mac), APFS or HFS+ (Mac)

Multi view monitoring

• Multi view monitoring: configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, media player, streaming status, recording status and audio meters
• Multi view video standard: HD

Media player

• Media players: 2
• Channels: fill and key for each media player
• Media pool still image capacity: 20 with fill and key
• Media pool still image format: PNG, TGA, BMP, GIF, JPEG and TIFF
• Media pool video file format: TGA sequence
• Media pool audio file format: WAV, MP3 and AIFF

Control

• Built in control panel. Software control panel with camera control included. Supports optional hardware panel
• Control panel connection: Ethernet supports 10/100/1000/10G BaseT, Ethernet used for direct connection between panel and chassis or via network. Also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software
• Control panel compatibility: includes ATEM Software Control Panel, also compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel, can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro
• Control panel included: ATEM Software Control Panel included free for Mac 10.14 Sonoma, Mac 10.15 Sequoia or later later and Windows 11, Windows 10 64 bit only

Processing

• Audio mixer: 58 channel mixer, selectable ON / OFF / Audio-Follow-Video level and peak metering. Master gain control. 6 band parametric EQ, dynamics including expander, gate, compressor and limiter.
• Camera control: when used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start / stop

Software

• Control panel included: ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later and Windows 10 or 11.
• Software updates: using USB or Ethernet connection directly connected to macOS or Windows computers. Includes ATEM Setup Utility.
• Configuration: set via ATEM Software Control, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis

Operating systems

• Mac 14.0 Sonoma, Mac 15.0 sequoia or later, Windows 10 and 11, Windows 11 for ARM

Power requirements

• Power supply: 1 x external 12 V power supply

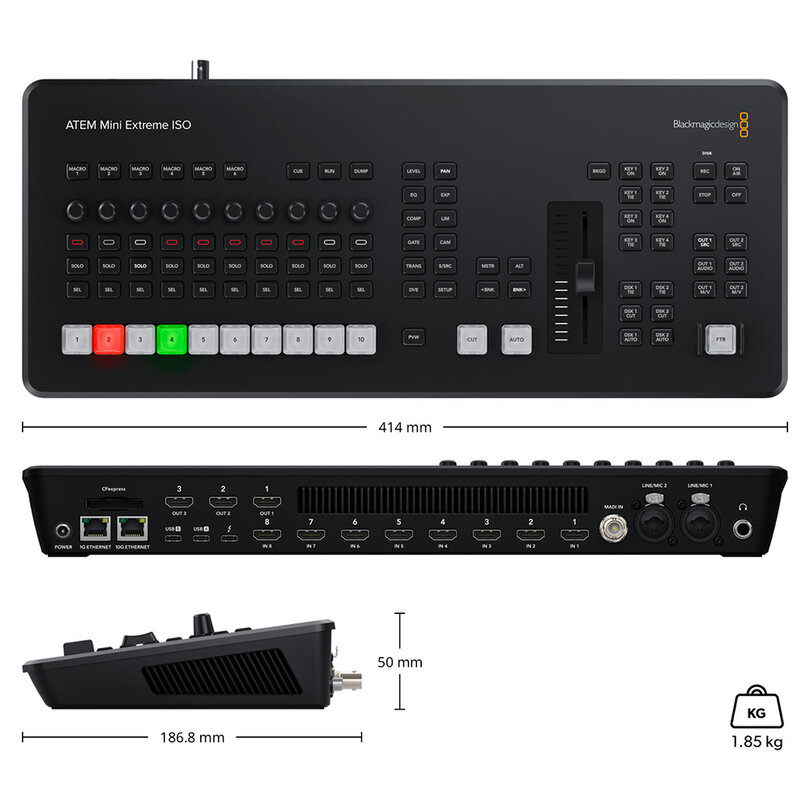

Physical specifications

• Dimensions: 41.4 x 5 x 18.68 cm
• Weight: 1.85 kg
