ALPD®, developed and patented by Appotronics, is the heart of its high-brightness projectors and represents one of the most advanced innovations in the field of light generation. It is based on a source that combines a multicolor laser and high-performance phosphorescent materials to achieve exceptional brightness, high energy efficiency, very wide color coverage, and a range of other advantages that make traditional laser systems obsolete. In this article we will analyze how ALPD® technology works, its evolution from the first generations to the current ALPD® 5.0, and the concrete benefits it offers in professional video applications.
In the high-end videoprojection landscape, Appotronics has become a global benchmark thanks to a proprietary technology that clearly sets its projectors apart from any other solution on the market: ALPD®, an acronym for Advanced Laser Phosphor Display.
This technology, introduced in 2007 and now adopted in tens of thousands of projection devices, was created to overcome the limits of traditional laser systems, delivering more natural color rendering, higher brightness, and stability that make it ideal for critical applications such as architectural mapping, museums, dynamic scenery, water screens, and large venues.
As mentioned in the summary, Appotronics developed a light source that combines RGB lasers with photoluminescent materials to achieve the benefits described above, also drastically reducing speckle, an unwanted visual effect that appears when pure laser light hits an irregular surface (screens, canvases, walls, water, transparent surfaces), manifesting as sparkling dots, image grain, micro-light vibrations, and random patterns that seem to “move” across the surface.
ALPD® is the core of the entire Appotronics range, from models above 10,000 lumens to high-end 3-DLP systems; it is the technological foundation that allows these projectors to reach brightness levels of up to 60,000 lumens, gamuts up to BT.2020, and a spectral continuity impossible to achieve with pure RGB lasers.
What is ALPD®?
To understand what ALPD® is, we need to take a step back and explain how the source of a laser projector works. A laser projector, in its basic version, uses blue laser diodes combined with a phosphor wheel to generate the pure white light needed to create the images projected onto the screen.
- The blue laser diodes are the primary light source. They emit a blue laser beam at extremely high power and precision
- The phosphor wheel is the heart of the system. It is a rotating disc coated with green/yellow phosphor. When the blue laser hits the phosphor, it reacts chemically, emitting a bright yellow light. Part of the disc is left transparent (or mirrored) to allow the blue light to pass through as well
- By mixing the yellow light (generated by the phosphor) and the blue light originally produced by the laser, perfect white light is obtained at extremely high intensity
The white light obtained is then sent to an RGB segmented color wheel, which separates it into the three primary colors, and finally to an optical chip (DMD) that receives the primary colors and projects them through the optics to compose the final image seen on the screen.
With this premise in mind, let’s return to ALPD®, a “modular” light-generation technology based on the combination of lasers and advanced phosphorescent materials.
Unlike traditional laser systems, which use a single blue laser to excite a phosphor wheel, ALPD® employs multi-laser architectures and optimized phosphors to achieve:
- Higher luminous efficiency
- Wider and more natural spectrum
- Less speckle
- Greater chromatic stability over time
- Much higher brightness
ALPD® takes several forms:
- Blue laser + phosphor
- Blue laser + high-efficiency phosphor
- Blue laser + red laser + phosphor
- RGB laser + phosphor
- RGB laser + phosphor + independent channels
Each configuration is designed to improve a specific aspect: efficiency, red purity, speckle reduction, gamut range, thermal stability, optical engine compactness, etc.
The evolution of ALPD® technology
ALPD® technology has not remained unchanged over time: it is the result of a research and development journey that began in 2007 and continued through five generations, each designed to overcome the limits of the previous one. From the first implementation based on blue laser and phosphor to the current full-spectrum RGB architecture with independent channels, ALPD® has progressively expanded brightness, efficiency, color purity, and image stability. This evolution has allowed Appotronics to build a unique technological platform in the industry, now adopted in thousands of installations.

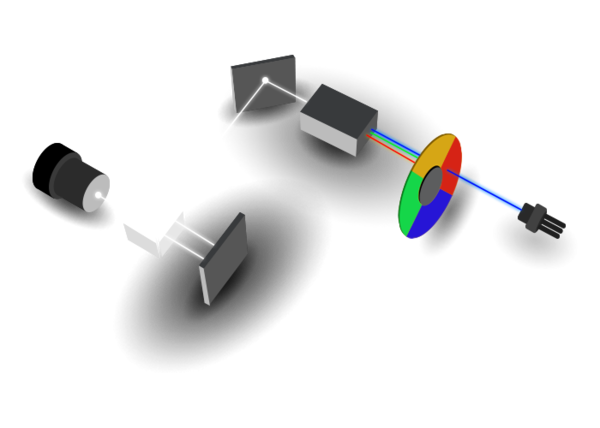

ALPD® 1.0
Appotronics introduced its revolutionary technology in 2007, obtaining patents in the United States and China:
- Blue laser + phosphor
- Ultra-thin optical engine
- Excellent thermal management
- Low power consumption
- Long lifespan
- Brightness: 100 - 500 lm
- Color gamut: REC.709

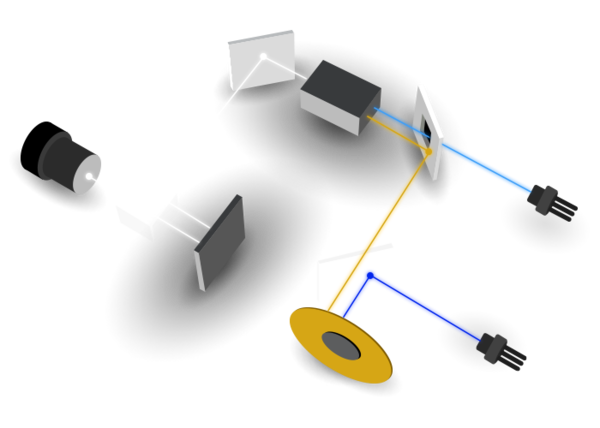

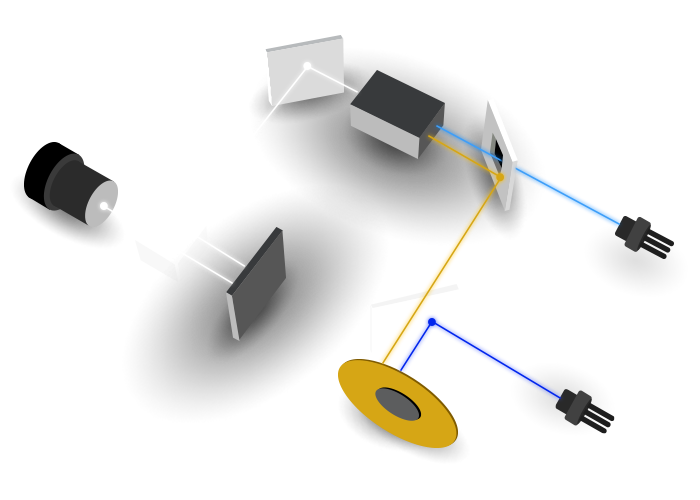

ALPD® 2.0
Introduced in 2010 for laser TV products:
- Blue laser + phosphor
- High luminous efficiency
- Good heat dissipation (metal disc coating)
- Overcomes the limits of traditional red phosphors
- Excellent synchronization for smooth images
- Brightness: 1000 - 20,000 lm
- Color gamut: REC.709

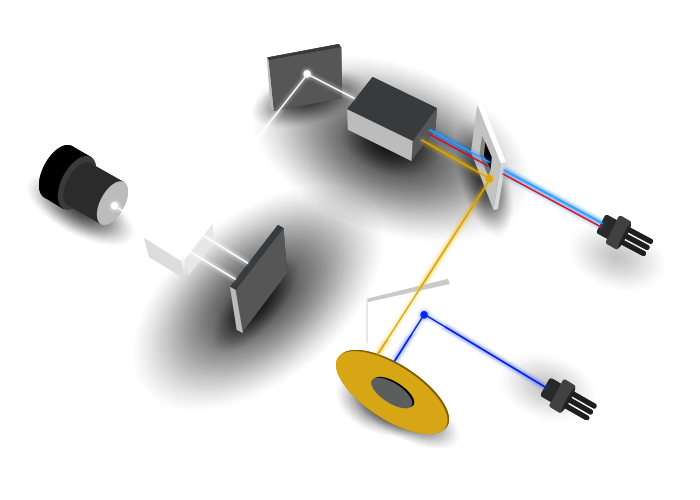

ALPD® 3.0
Duo Laser + phosphor solution (2015):
- Blue and red laser + phosphor
- Reduces the color-correction loss caused by red phosphor
- Improves the purity and brightness of red light and also the brightness of white light
- Significantly reduces red laser speckle
- Brightness: 2000 - 40,000 lm
- Color gamut: DCI - P3

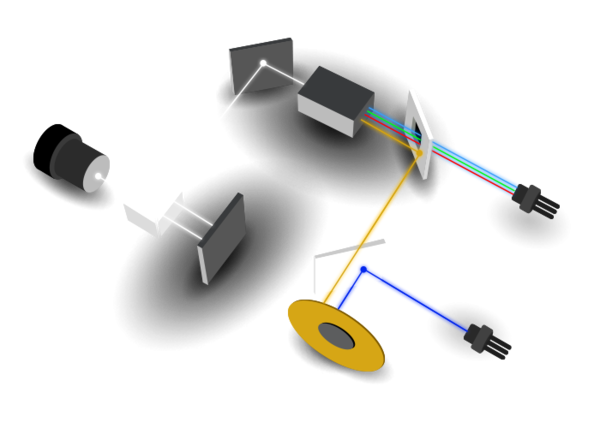

ALPD® 4.0
Launched in 2018 to meet the most advanced needs of cinema industry customers. Phosphor + RGB laser solution to increase luminous efficiency by 30%.
- RGB laser + phosphor
- Wide color gamut
- High luminous efficiency, high brightness
- The mixing of coherent and incoherent laser light drastically reduces laser speckle
- Brightness: 2000 - 60,000 lm
- Color gamut: BT2020
ALPD® 5.0
Wider color gamut, higher luminous efficiency, and more compact dimensions. Blue + red + green RGB laser (2022)
- RGB laser + phosphor and independent channels
- Brightness and color gamut adjustable for different situations
- Brightness: 2000 - 60,000 lm
- Maximum color gamut BT2020
Advantages and benefits of ALPD® technology
These are the main technical advantages of ALPD® technology:
- Extremely high brightness and high efficiency
ALPD® guarantees brightness of up to 60,000 lumens with reduced power consumption, thanks to a proprietary laser + phosphor architecture that maximizes luminous efficiency
- Drastically reduced speckle
The combination of coherent (laser) and incoherent (phosphor) light reduces the speckle typical of pure RGB lasers, improving image readability
- Very wide gamut (up to BT.2020)
ALPD® 5.0 reaches the widest color coverage currently available for professional videoprojection
- Chromatic stability and long lifespan
The laser source has minimal and predictable brightness decay, with operating lifespans of up to 20,000 - 30,000 hours

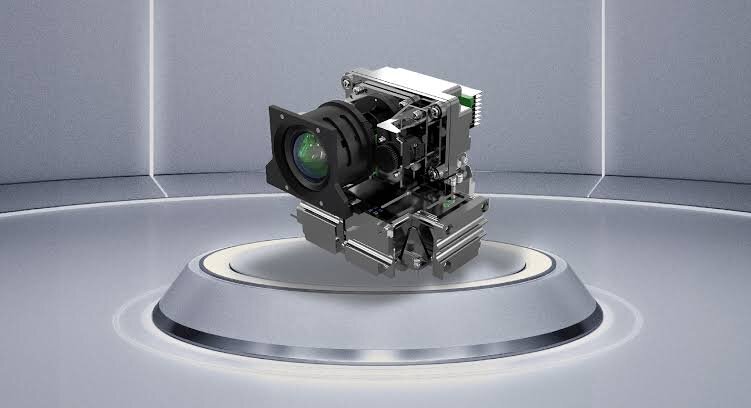

- Compact and reliable optical engine
The ultra-thin design and advanced thermal management allow sealed optical engines that are lighter and more robust
- Mature and proven technology
Appotronics has installed ALPD® in tens of thousands of cinema halls and professional projectors, with a consolidated production chain
- Superior performance in critical applications
ALPD® RGBX maintains a stable and natural image even on difficult surfaces such as water screens, transparent canvases, and dynamic scenery.
Conclusions
ALPD® technology today represents one of the most significant advances in the world of professional videoprojection. It is not just a more efficient light source, but an entire optical architecture that redefines how light is generated: more natural, more stable, brighter, and with a color coverage that reaches the maximum levels of the BT.2020 standard. The combination of advanced lasers and phosphors, refined over five generations, makes it possible to overcome the limits of traditional laser systems.
In this context, Appotronics stands out, beyond having invented ALPD®, for having turned this technology into something reliable and scalable. The strength of ALPD® lies in its ability to offer a complete ecosystem: compact optical engines, high energy efficiency, long lifespan, wide color gamut, and stability that allows designers to achieve coherent and natural images in any condition.
For industry professionals - rental, system integrators - and for contexts ranging from broadcast to corporate events, from museums to large venues, using ALPD® means being able to rely on projectors that are an integral part of the visual content. It is a technology that makes it possible to create immersive experiences, dynamic scenery, and high-impact installations, ensuring consistent image quality over time, where efficiency, color fidelity, and reliability converge in a single platform designed for the needs of the professional market.
