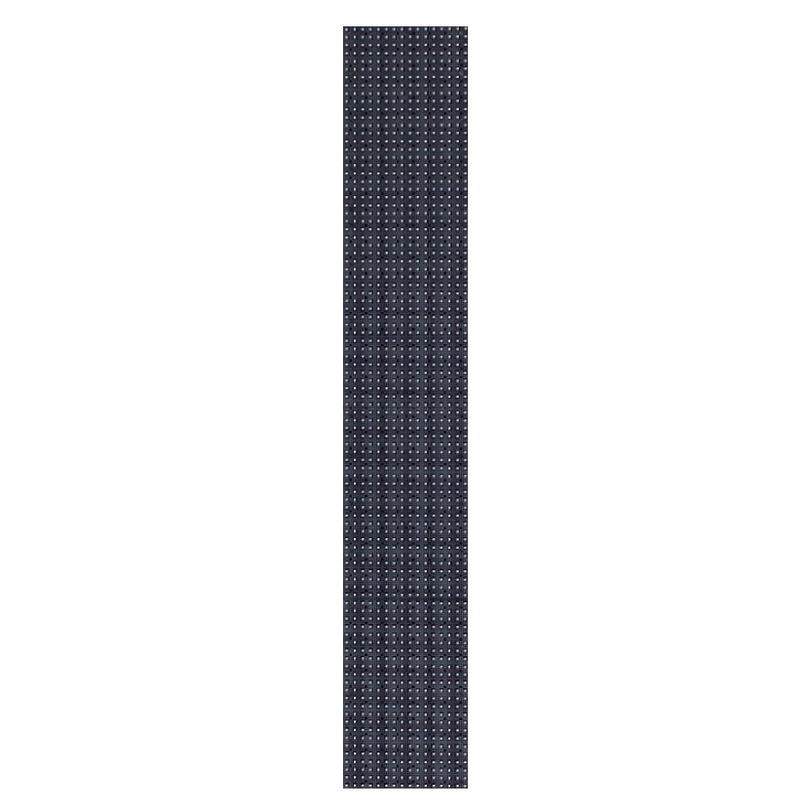

Rectangular P3.125 LED display with 600 x 100 mm cabinet, SMD2020 LED, for indoor installations (1000 nit).

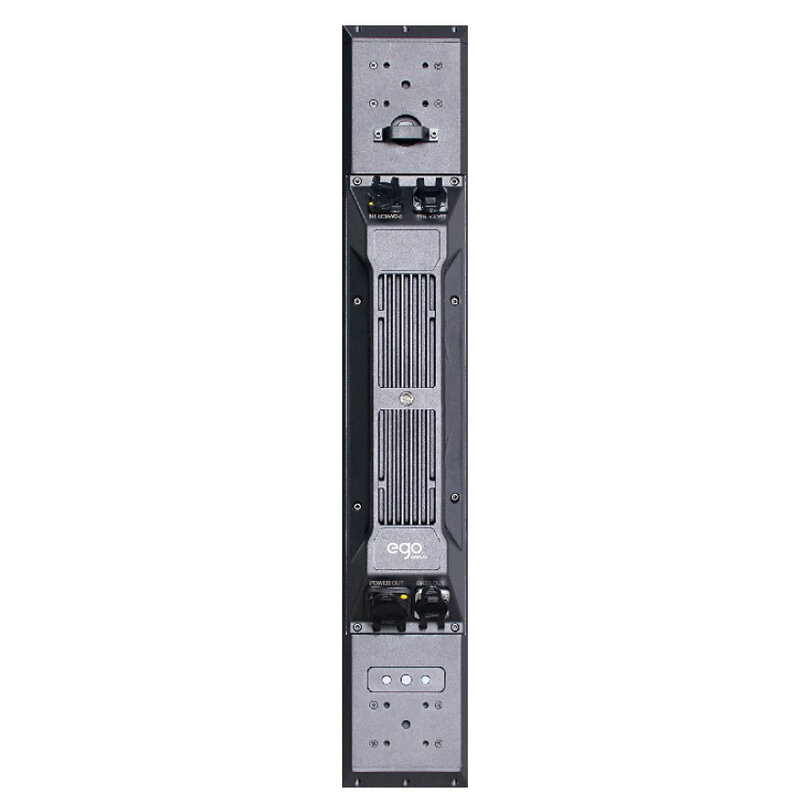

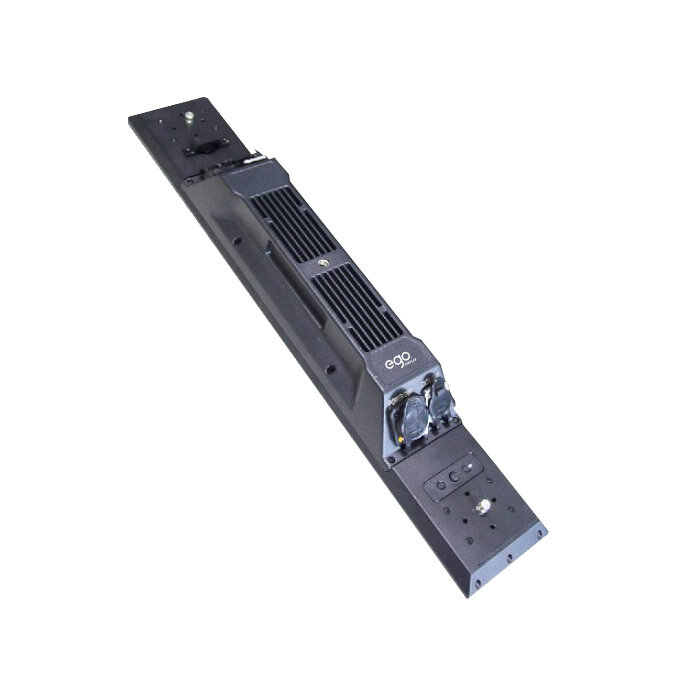

Thin and light cabinet composed of 2 modules (pixel brick) of 300 x 100 mm each. Its shape allows greater creative freedom and flexibility in installation. Integrated power supply and receiving card.
This type of display represents a creative and flexible solution, suitable for artistic, scenographic or architectural installations in indoor environments.
Areas of use
Technical characteristics
| Pixel pitch | 3.125 mm |
| LED type | SMD2020 black |
| Module size | 300 x 100 mm |
| Module resolution | 96 x 32 pixel |
| Panel resolution | 193 x 32 pixel |
| Physical density | 6176 pixel/m2 |
| Brightness | ≥ 1000 cd/m2 |
| Max. power consumption | 50 W/m2 |
| Ave. power consumption | 20 W/m2 |
| Weight | 2 kg/panel |
| Refresh rate | ≤ 3840 Hz |
| Control mode | synchronous display with control PC by DVI |
| Protection level | IP31 indoor |
| Dimension | 600 x 100 mm |
| Weight | 2 kg/panel |
