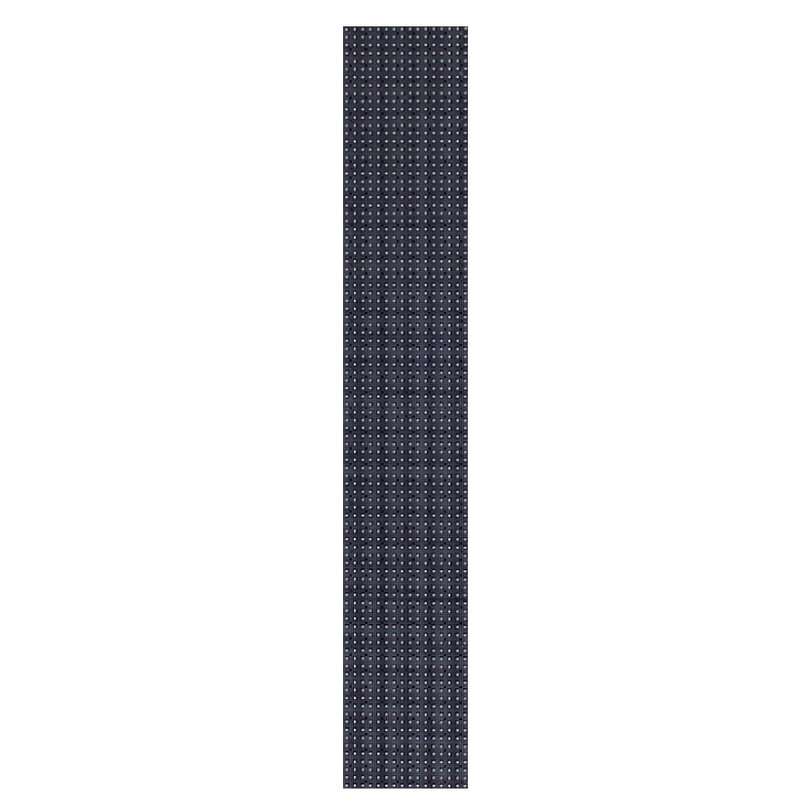

P6.25 rectangular LED display with 600 x 100 mm cabinet, SMD2727 LEDs, for outdoor installations (5500 nits), IP65.

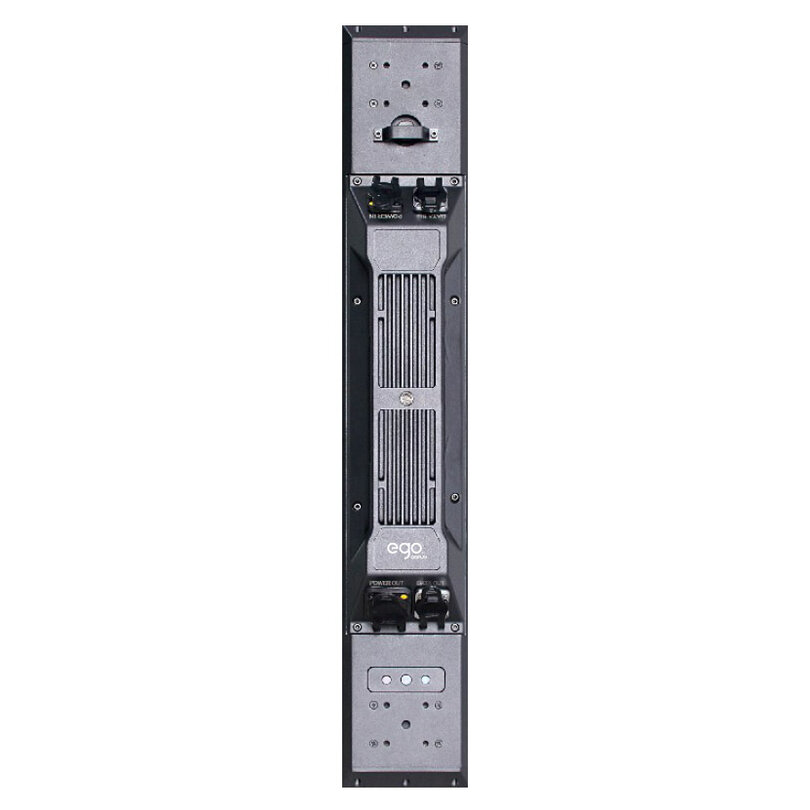

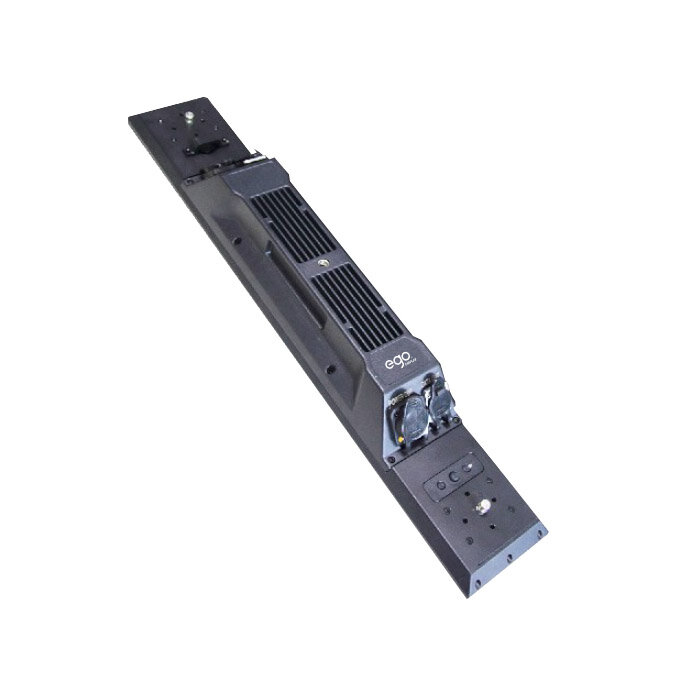

Slim and lightweight cabinet composed of two 300 x 100 mm pixel brick modules. Integrated power supply and receiving card.
User benefits
Areas of use
Technical characteristics
| Pixel pitch | 6.25 mm |
| LED type | SMD2727 |
| Module size | 300 x 100 mm |
| Module resolution | 48 x 16 pixel |
| Panel resolution | 96 x 16 pixel |
| Physical density | 1536 pixel/m2 |
| Brightness | ≥ 5500 cd/m2 |
| Max. power consumption | 50 W/m2 |
| Ave. power consumption | 20 W/m2 |
| Refresh rate | ≤ 3840 Hz |
| Control mode | synchronous display with control PC by DVI |
| Protection level | IP65 outdoor |
| Dimension | 600 x 100 mm |
| Weight | 2.1 kg/panel |
