Compact Thunderbolt 4 capture interface with 12G‑SDI and HDMI inputs for professional acquisition up to 2160p 60, 10‑bit video quality, advanced broadcast workflows, full compatibility with major editing, graphics and live production software

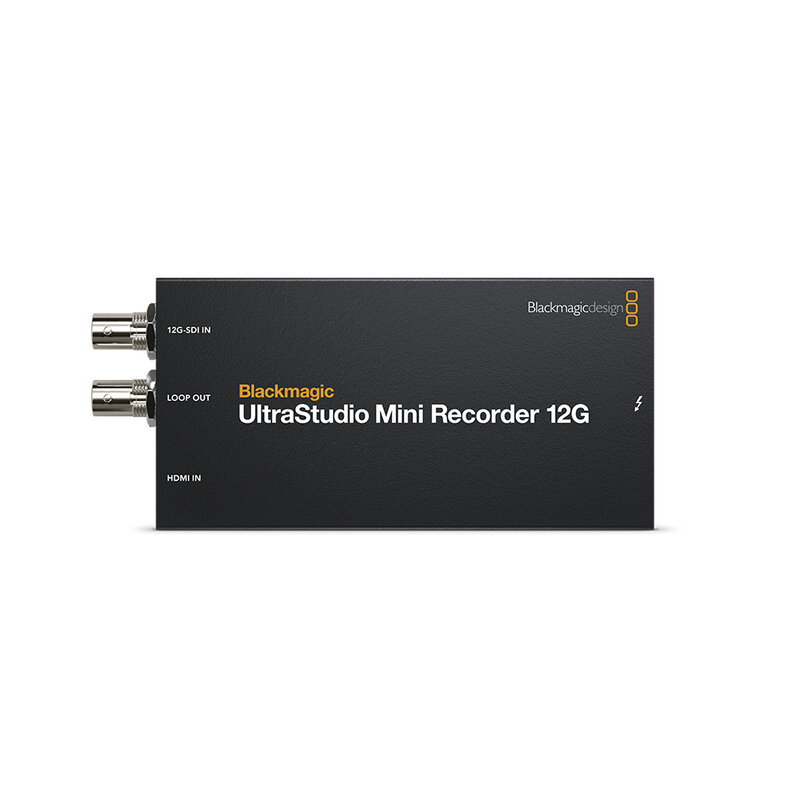

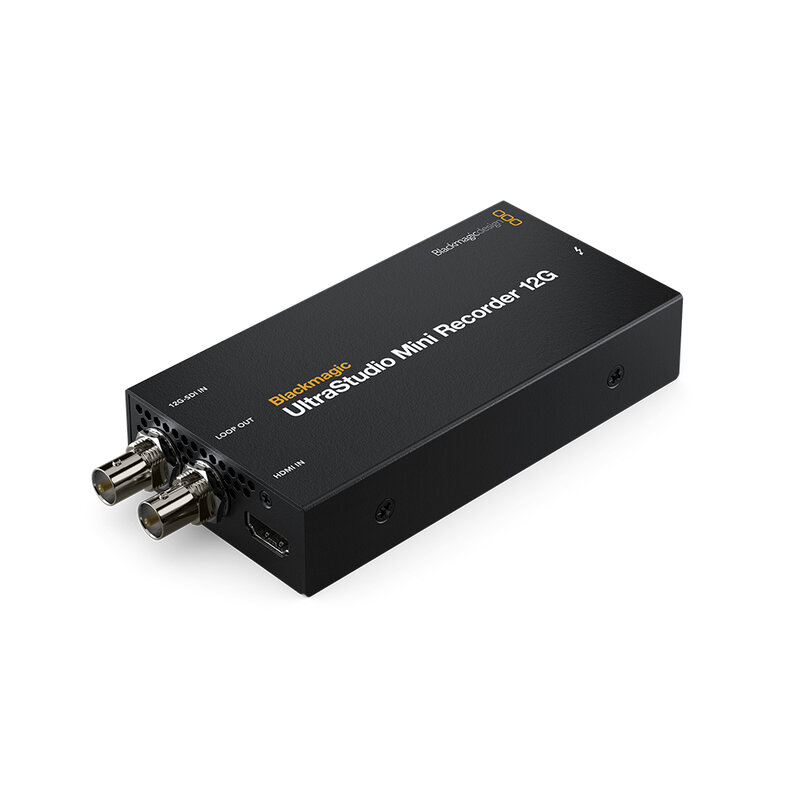

UltraStudio Mini Recorder 12G is a video capture interface that receives an SDI or HDMI signal from an external source and transfers it to your computer via Thunderbolt 4, allowing you to capture broadcast-quality video streams with minimal latency. It essentially transforms your computer into a reliable ingest system, capable of capturing SD, HD, and Ultra HD content up to 2160p 60, seamlessly integrating into live production, streaming, post-production, and graphics workflows.
Compact and powered directly by your computer, it's designed for camera operators, production engineers, professional streamers, and editors who need to capture signals from cameras, switchers, decks, or SDI/HDMI sources with absolute stability and full compatibility with professional software.
Thanks to the Thunderbolt 4 connection, the device guarantees sufficient bandwidth to handle 10-bit signals, advanced formats, and uncompressed capture, ensuring faithful capture of the original signal. UltraStudio Mini Recorder 12G uses the same DeckLink API and Desktop Video drivers as Blackmagic Video cards, ensuring compatibility with DaVinci Resolve, Final Cut Pro, Media Composer, Premiere Pro, After Effects, Fusion, OBS, and many other editing, graphics, and streaming applications.
Format support includes SD (525i 59.94, 625i 50), HD up to 1080p 60, and Ultra HD up to 2160p 60, with Level A/B support for 3G-SDI. The device supports codecs such as ProRes, DNxHD, and 10-bit uncompressed, and includes Blackmagic Media Express for ingest and disk performance testing.
User benefits
- Video capture up to 2160p 60 fps
- 10-bit support for broadcast-quality capture
- 12G-SDI and HDMI input
- Compatibility with professional editing, graphics, and streaming software
- Thunderbolt 4 interface for high bandwidth and direct power
- Compact and portable design
- Professional codec support (ProRes, DNxHD, 10-bit uncompressed)
- Media Express software included
Areas of use
- Broadcast
- Live streaming and multi-camera production
- Post-production and motion graphics
- Ingest from professional cameras, switchers, and decks
- Editing
- Color grading
- Digitization and content archiving
Technical characteristics

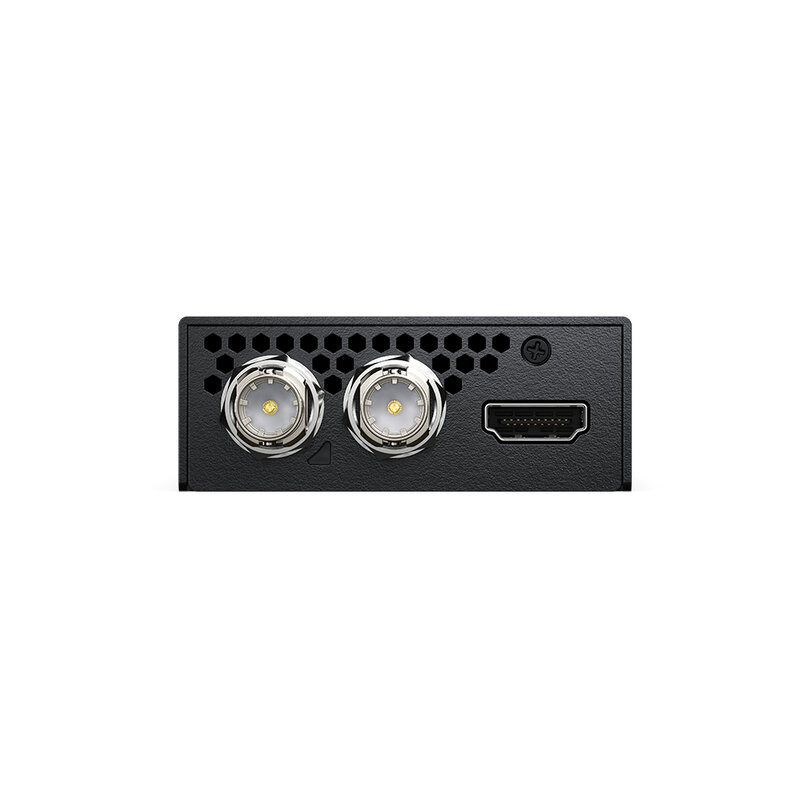

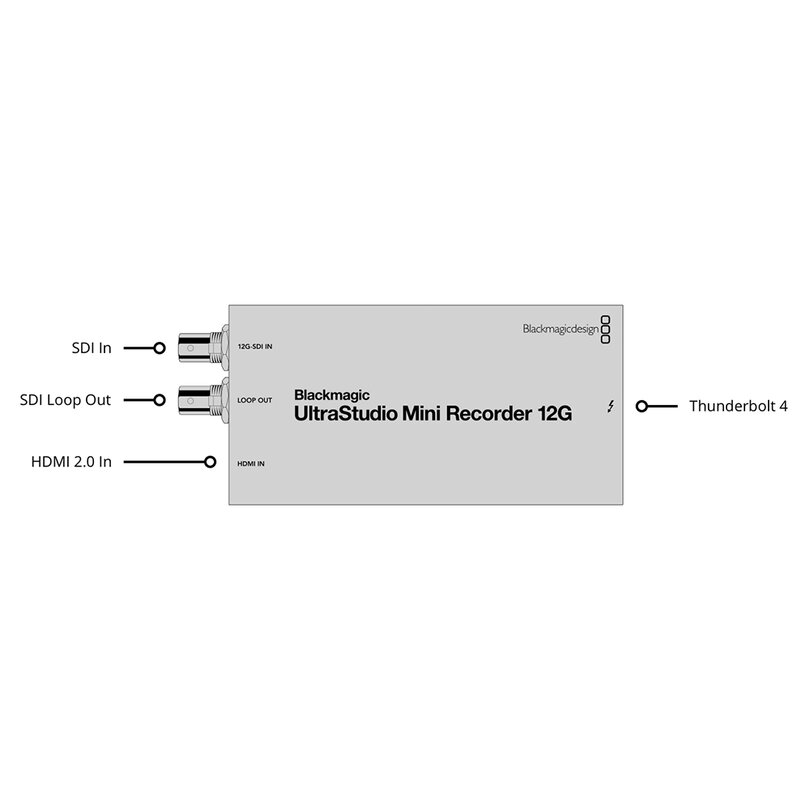

Connections
- SDI video inputs: 1
- SDI loop outputs: 1
- SDI rates: 270 Mb, 1.5G, 3G, 6G, 12G
- SDI audio inputs: 16 channels embedded audio on SDI input
- HDMI 2.0 video inputs: 1
- HDMI audio inputs: 8 channels embedded audio on HDMI input
- Computer interface: Thunderbolt 4 (Mac OS Apple Silicon Macs, Windows and Linux)
Supported codecs
- Video codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, uncompressed 8-bit 4:2:2, uncompressed 10-bit 4:2:2, uncompressed 10-bit 4:4:4
Software
- Software included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux
- Internal software upgrade: firmware built into software driver. Software driver loads upgrades at system start or via updater software
Software applications
- Wirecast, vMix, OBS. Other supported applications include: Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go & [REC]Marker, Zoom
- These are third party applications and support may vary, check with your software vendor
SDI video standards
- SD video standards: 525i 59.94 NTSC, 625i 50 PAL
- HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 47.95, 1080p 48, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080PsF 29.97, 1080PsF 30
- 2K video standards: 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2Kp 29.97 DCI, 2Kp 30 DCI, 2Kp 47.95 DCI, 2Kp 48 DCI, 2Kp 50 DCI, 2Kp 59.94 DCI, 2Kp 60 DCI, 2KPsF 23.98 DCI, 2KPsF 24 DCI, 2KPsF 25 DCI, 2KPsF 29.97 DCI, 2KPsF 30 DCI
- Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 47.95, 2160p 48, 2160p 50, 2160p 59.94, 2160p 60
- 4K video standards: 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI, 4Kp 29.97 DCI, 4Kp 30 DCI, 4Kp 47.95 DCI, 4Kp 48 DCI, 4Kp 50 DCI, 4Kp 59.94 DCI and 4Kp 60 DCI
- SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE ST2108-1
- SDI metadata support: RP 188/SMPTE 12M-2 and closed captioning
- SDI audio sampling: television standard sample rate of 48 kHz and 24-bit
- SDI video sampling: 4:2:2, 4:4:4
- SDI color precision: 8, 10, 12-bit RGB 4:4:4 up to 2160p 30, and 8, 10-bit YUV 4:2:2 in all standards
- SDI color space: Rec. 601, Rec. 709 and Rec. 2020
- HDR support: HDR static metadata packing, HLG and PQ transfer characteristics
- Multiple rate support: SDI video connection is switchable between SD, HD, 2K, Ultra HD and 4K
HDMI video standards
- SD video standards: 525i 59.94 NTSC, 625i 50 PAL
- HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 47.95, 1080p 48, 1080p 50, 1080p 59.94, 1080p 60
- Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 47.95, 2160p 48, 2160p 50, 2160p 59.94, 2160p 60
- 4K video standards: 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI, 4Kp 29.97 DCI, 4Kp 30 DCI, 4Kp 47.95 DCI, 4Kp 48 DCI, 4Kp 50 DCI, 4Kp 59.94 DCI and 4Kp 60 DCI
- HDMI audio sampling: television standard sample rate of 48 kHz and 24 bit
- HDMI video sampling: 4:2:2 and 4:4:4
- HDMI color precision: 8, 10 and 12-bit RGB 444, 8-bit YUV 444* and 12-bit YUV 422* in all standards
- * converted from 10-bit YUV 422
- HDMI configuration: HDMI 2.0 supports Deep Color
- HDMI color space: Rec. 601, Rec. 709 and Rec. 2020
- HDR support: HDR static metadata packing, HLG and PQ transfer characteristics
- Multiple rate support: HDMI video connection is switchable between SD, HD, Ultra HD and 4K
- Copy protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content
Hardware frame buffer
- 2vuy (8-bit YUV), ARGB, BGRA (8-bit RGB), Ay10 (10-bit YUVA), r210 (10-bit RGB), v210 (10-bit YUV), R12B, R12L (12-bit RGB)
Processing
- Colorspace conversion: hardware based real time
Operating systems
- Mac 15.0 Sequoia, Mac 26.0 Tahoe or later
- Windows 10 64-bit, Windows 11
- Linux
Power requirements

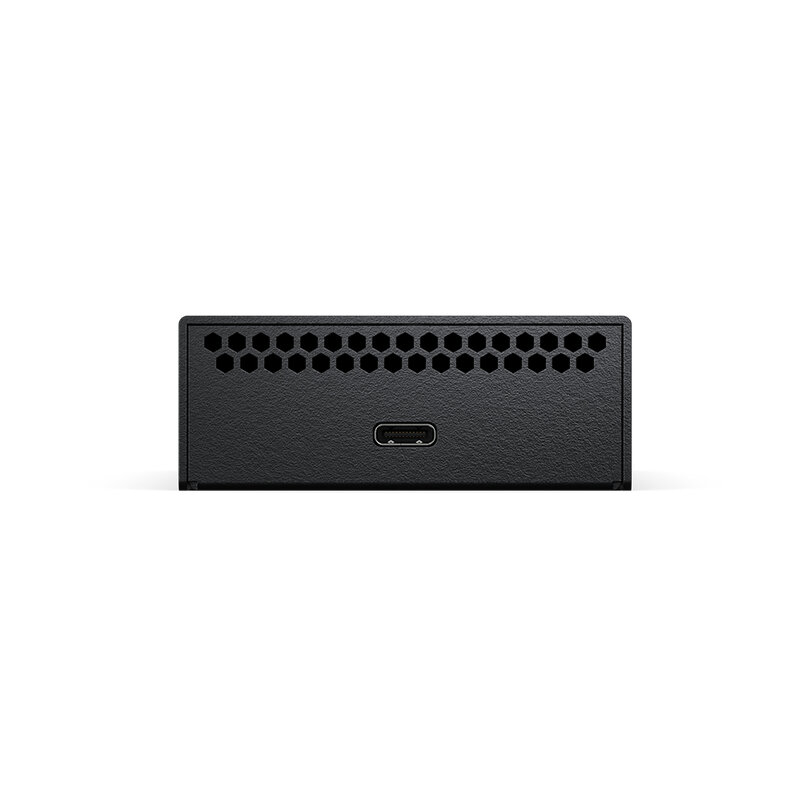

- Power input: powered by Thunderbolt cable. Requires computer with a Thunderbolt 4 USB-C port
- Power usage: 15 W
Environmental specifications
- Operating temperature: 5° to 40° C
- Storage temperature: -20° to 45° C
- Relative humidity: 0% to 90% non-condensing
Physical installation
- Works with Apple Silicon Macs and Thunderbolt 4/Thunderbolt 5 PCs
Physical specifications
- Dimensions: 148 × 66 × 25.5 mm
- Weight: 350 g
What’s in the box
- UltraStudio Mini Recorder 12G
- Welcome wallet with QR code for software download
